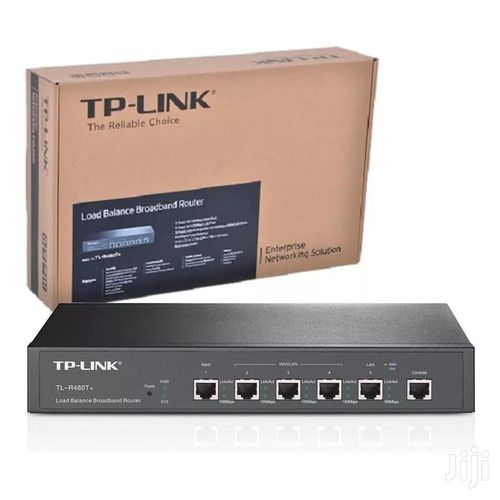

TP-Link Load Balance Broadband Router – TL-R480T+

TP-Link TL-R480T+ Load Balance Router optimizes multi-Internet connections for small businesses and offices. This broadband router supports multiple WAN ports with intelligent load balancing. It ensures reliable uptime and efficient bandwidth use. Users achieve stable connectivity through failover and distribution features.

Product Details

What is the TP-Link TL-R480T+ Load Balance Router?

This load balance broadband router features multiple WAN capabilities. It includes one fixed WAN port, one fixed LAN port, and three changeable WAN/LAN ports. This design supports up to four WAN ports. It enables various Internet access setups through one device. Advanced load balancing strategies include bandwidth-based, application-optimized, and policy routing. Link backup provides automatic failover. Built-in firewall offers DoS defense, IP/MAC/URL filtering, and access control. Bandwidth control manages traffic per user or application. PPPoE Server supports client authentication. Web-based management simplifies configuration. Rackmount design fits standard 19-inch setups. Professional lightning protection safeguards hardware.

For insights on load balancing technology, visit Wikipedia’s Load balancing (computing) page.

Use Cases for TP-Link TL-R480T+ Load Balance Router

Small businesses combine multiple ISP lines for increased bandwidth. It distributes traffic to prevent overload on single connections. Offices maintain Internet access during ISP outages via failover. Hotels provide stable connectivity for guests and operations. Internet cafes handle high user volumes with balanced loads. Retail stores support POS systems and security cameras reliably. Enterprises manage bandwidth for VoIP, browsing, and downloads. Communities share connections among multiple users efficiently.

Pro-level details include concurrent sessions up to 30,000. It supports Static IP, Dynamic IP, PPPoE, PPTP, L2TP, and Dual Access. Policy routing directs specific traffic types. Bandwidth control guarantees fair allocation. IP-MAC binding prevents ARP spoofing. Virtual server and port triggering enable hosting services. Static routing supports advanced topologies. This router suits environments requiring redundancy and traffic optimization.

Explore related networking like the D-Link DGS-F1210-26PS-E 24-Port Managed Gigabit Switch for expanded LAN capabilities.

Key Specs of TP-Link TL-R480T+ Load Balance Router

• Ports: 1 Fixed 10/100 Mbps Ethernet WAN Port, 1 Fixed 10/100 Mbps Ethernet LAN Port, 3 Changeable 10/100 Mbps Ethernet WAN/LAN Ports (up to 4 WAN total)
• Standards: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
• Network Media: 10BASE-T: UTP Cat. 3/4/5 (Max 100m), 100BASE-TX: UTP Cat. 5/5e (Max 100m)
• WAN Connection Types: Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
• Load Balance: Policy Routing, Link Backup (Timing/Failover), Bandwidth-Based, Application Optimized
• Concurrent Sessions: 30,000
• NAT: One-to-One NAT, Multi-Nets NAT
• Security: IP/MAC/URL/WEB Filtering, DoS Defense, FTP/SIP/PPTP/IPsec/H.323 ALG, Attack Defense
• Bandwidth Control: IP-based, Guarantee & Limited Bandwidth
• Other Features: PPPoE Server, Virtual Server, Port Triggering, DMZ, UPnP, Static Routing, IGMP Proxy/Snooping, SNMP, IP-MAC Binding, Session Limit
• Power Supply: Internal Universal, AC 100-240V ~50/60Hz input
• Dimensions: 294 × 180 × 44 mm
• Installation: Desktop or Rackmount (19-inch)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• LED Indicators: PWR, SYS, Link/Act, 100Mbps
• Casing: Metal
• Fanless: Yes (non-fan design)
• Additional Features: Port Mirror, Rate Control, Port VLAN, MAC Clone, Remote Management, System Log, Statistics

Review networking standards at IEEE official resources.

Why TP-Link TL-R480T+ Load Balance Router Stands Out

It supports up to four WAN ports for multi-ISP redundancy and aggregation. Intelligent load balancing maximizes bandwidth and ensures failover. Advanced QoS and bandwidth control prevent congestion. Strong firewall defends against DoS attacks and unauthorized access. PPPoE Server manages client accounts effectively. Professional lightning protection safeguards investments. Rackmount form suits business environments. Web management offers convenience without complex tools. High concurrent sessions handle busy networks. This delivers reliable, high-ROI connectivity for small to medium setups.

Enhance your network with the TP-Link AX300 Nano Wi-Fi 6 Adapter for wireless clients.
